Multi-band RF 5G Multiplexers: Versatile Solutions for Modern Communication Systems
#

Multi-band RF 5G multiplexers are essential components in radio frequency applications, enabling the combination of multiple RF signals into a single output or routing a single RF signal to multiple outputs. Common configurations include 1-input with 2, 3, 4, or 8 outputs, making them highly adaptable for various system requirements.

In wireless communication, these multiplexers facilitate the connection of multiple antennas to an RF front-end module. By multiplexing signals from different antennas to a single input port and distributing them to various outputs, they ensure efficient signal interconnection and transmission between antennas. Their utility extends to fields such as wireless communication, radar, and satellite communication, as well as RF development projects like spectrum analyzers, test instruments, and communication system construction, all aimed at enhancing signal transmission efficiency and overall system performance.

Temwell Group specializes in custom-designed RF multiplexers, focusing on the most widely used types:

Triplexer (1-input with 3-output multiplexer): An RF Triplexer is a passive component that combines and separates signals across three distinct frequency bands. With one input and three output ports, each output is dedicated to a specific frequency range. Triplexers are commonly integrated into wireless communication systems to enable simultaneous transmission of voice, data, and video across three frequency bands.

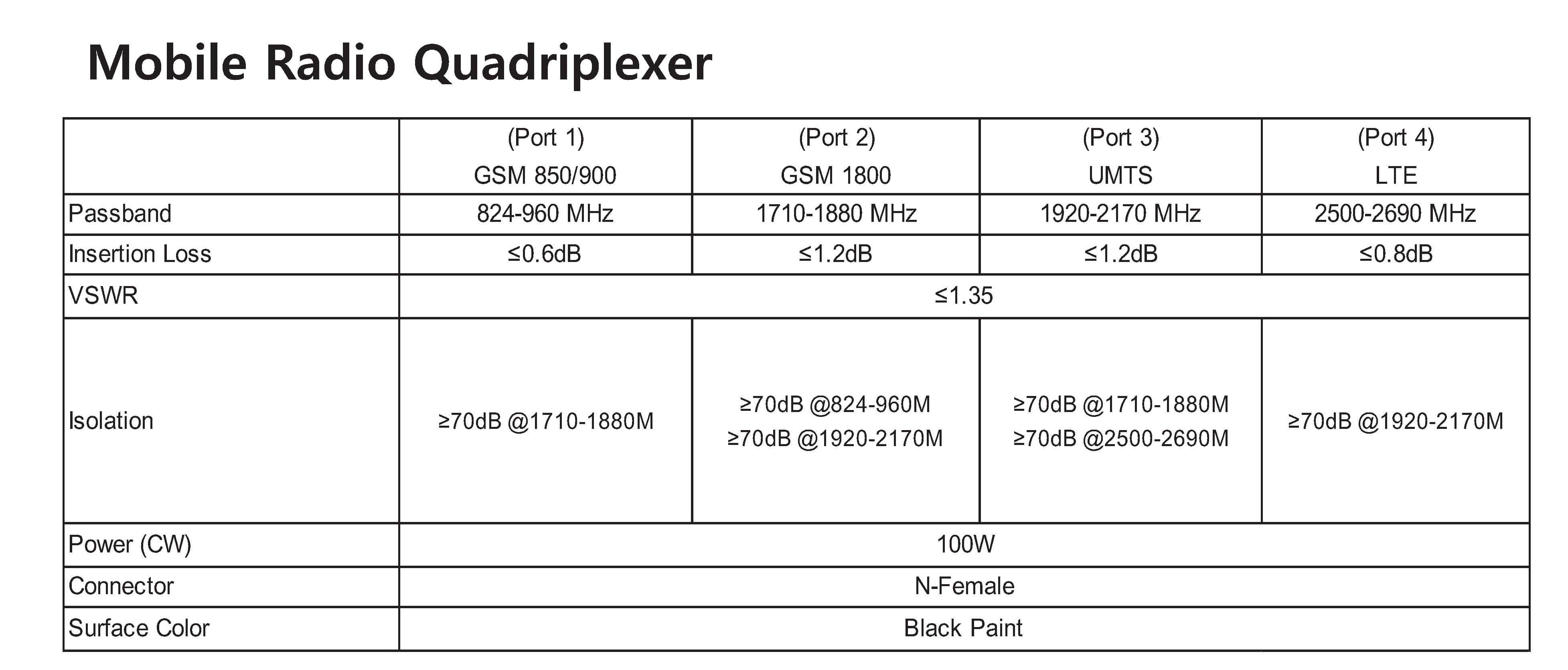

Quadplexer (1-input with 4-output multiplexer): An RF Quadplexer operates similarly to a Triplexer but manages four different frequency bands, allowing for the simultaneous processing and transmission of four signal sources.

Regardless of the number of signal segments, key design parameters such as frequency band range and isolation are critical to achieving optimal performance. Accurate development of these parameters is fundamental to producing high-quality RF multiplexer products.

With over 25 years of experience, Temwell Group offers a one-stop service for the design and manufacture of multi-band RF 5G multiplexers, including Triplexer and Quadplexer solutions. Customization options include:

Pass Frequency Band: VHF, UHF, Single band, Dual Band, Multi Band
Input/Output Configurations: 1 ant, 2 ant, 4 ant, multiple 2-way, 3-way, 4-way, 6-way, 8-32-way
Isolation: 50 dB and above
Power Handling: 5–200 W
Impedance: 50 or 75 ohm
Connector Types: SMA, F, N, and others

If you are seeking a reliable manufacturer for 5G RF splitter/combiner solutions, Temwell provides comprehensive support and customization. Contact us for further information.
